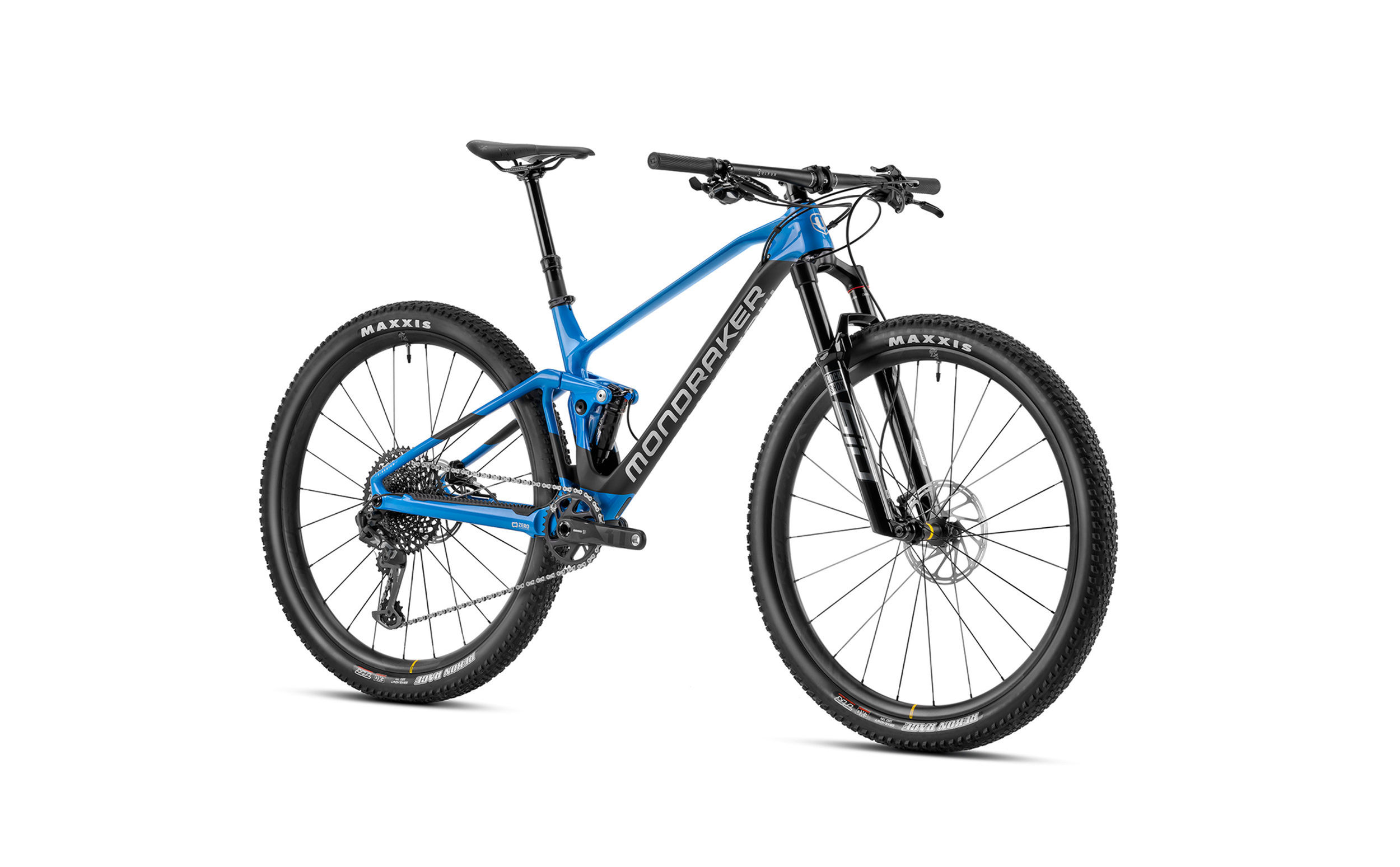

F-PODIUM CARBON DC R 2023

Frame
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 115mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

Sizes
S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock
Rockshox SID Luxe Ultimate RLR DebonAir, 185x50mm. Settings: OneLoc, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings
Light compression, medium rebound, Lockout 430, 1 Token
Fork
Rockshox SID Ultimate RL 29, 120mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: OneLoc, Low-speed rebound, air preload

Headset
Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
Fork remote
RockShox OneLoc

Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
Handlebar
ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips
ONOFF Desert, 1lock-on, 135mm
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle
Fizik Antares R7
Front brake
Sram Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake
Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims
Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes
24 straight-pull double butted spokes

Front hub
Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

Front tire
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Rear tire
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

Crankset
Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm
Rings
34T, CNC-machined alloy, X-SYNC 2

Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram GX Eagle, 12s, Powerlock

Rear derrailleur
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1

Casette
Sram XG-1275, 10-50T, 12s
Derailleur hanger
Sram UDH

Weight
11,8 kg
