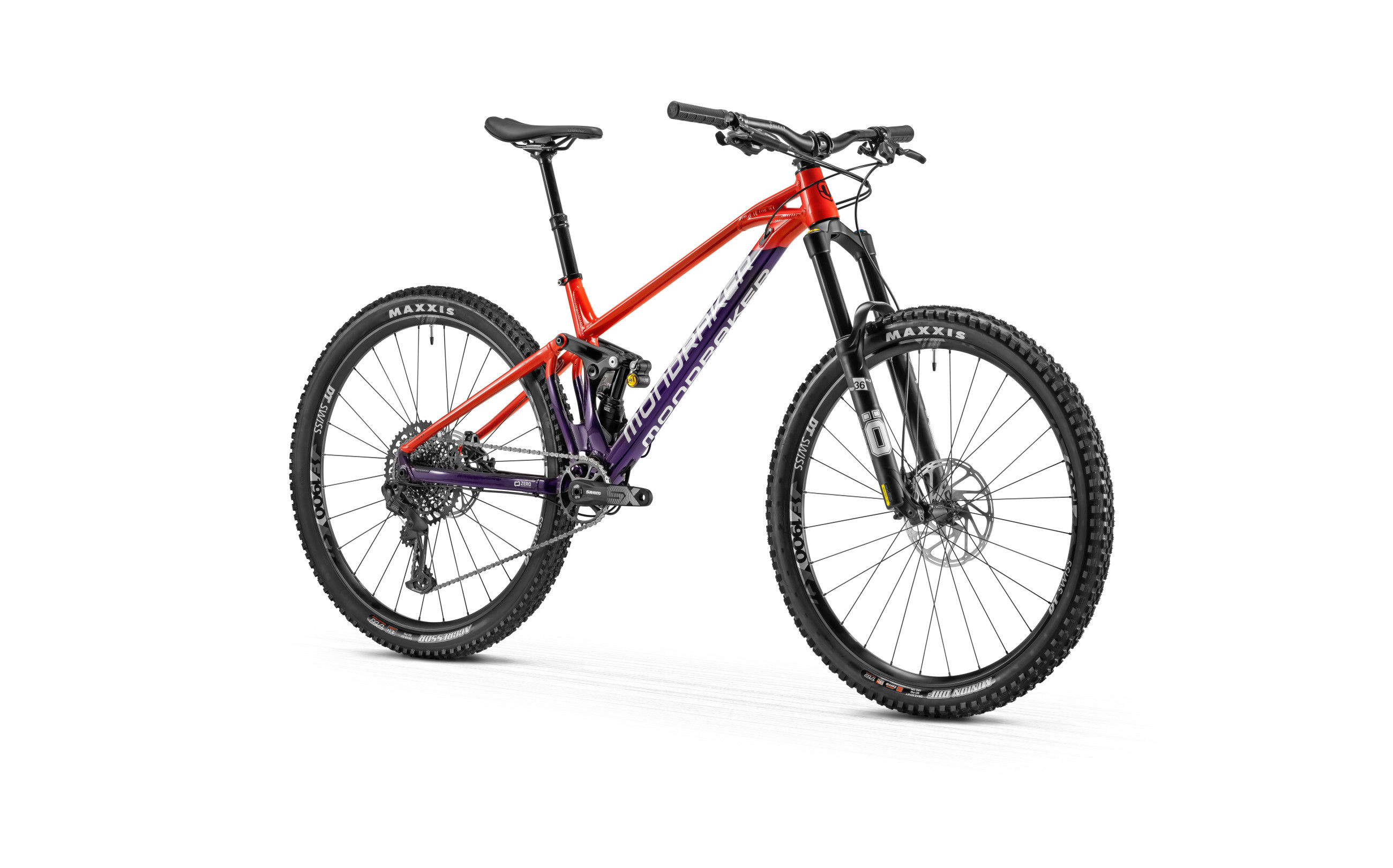

FOXY R 2022

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock
Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings
C20 compression, R35 rebound
Fork
Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Diamond, 1lock-on, 135mm

Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever
Sram G2 R, SwingLink, tool-free reach adjust
Rims
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes

Spokes
DT Champion, straightpull
Front hub
DT 370, Boost 15x110mm, IS 6 bolts

Rear hub
DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts,
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm

Chain
Sram SX Eagle, 12s, Powerlock
Rear derrailleur
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette
Sram XG-1230, 11-50T, 12s

Derailleur hanger
Mondraker M068
