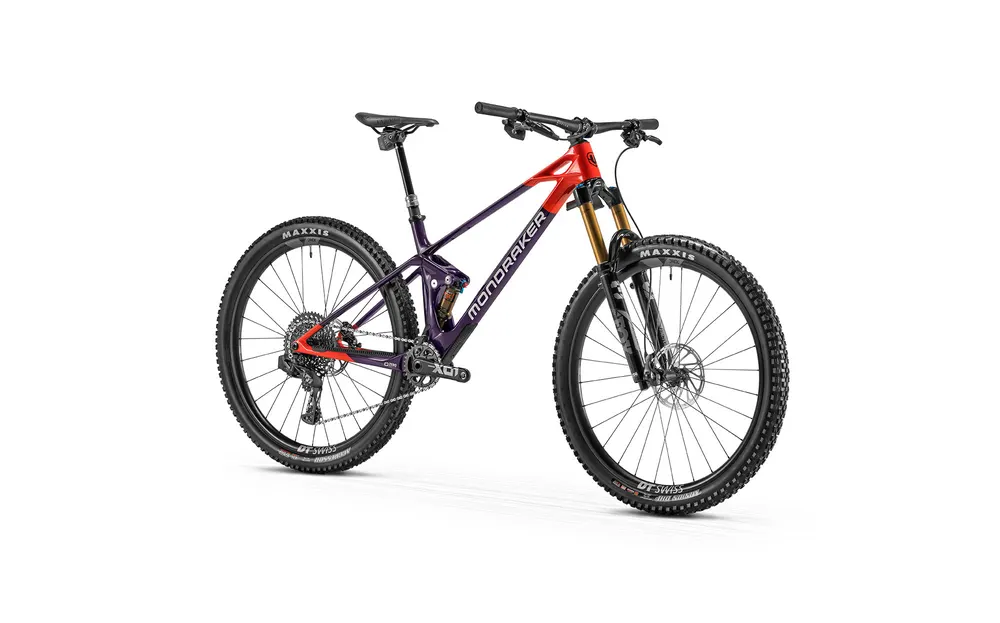

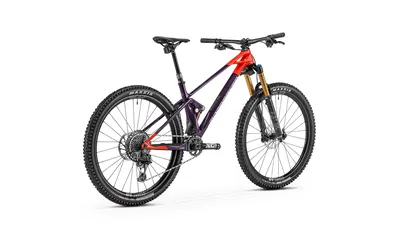

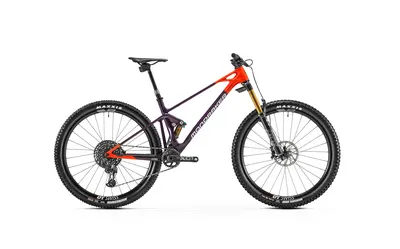

2022 Mondraker Raze Carbon RR SL

על המוצר

COMPONENTS

TECHNICAL SPECS

• Frame
• Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
• Sizes
• S: 380mm / M: 420mm / L: 450mm / XL: 500mm
• Rear shock
• Fox Float DPS Factory Kashima evol LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
• Shock settings
• Light compression, light rebound, air volume spacer 0.6
• Fork
• Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
• Headset
• Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
• Stem
• Onoff Krypton FG 30mm, CNC, 31.8mm barbore
• Handlebar
• Onoff Kripton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips
• Onoff Diamond, 1lock-on, 135mm
• Seatpost
• RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm
• Saddle
• Fizik Antares R7
• Front brake
• Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Rear brake
• Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Brake lever
• Sram G2 RSC, SwingLink, tool-free reach adjust
• Rims
• DT Swiss XCM1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes
• Spokes
• DT Competition, straightpull
• Front hub
• DT 240, Boost 15x110mm, IS 6 bolts
• Rear hub
• DT 240, Boost 12x148mm, 36T Ratchet EXP system, IS 6 bolts, XD freehub
• Front tire
• Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Rear tire
• Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
• Crankset
• Sram X01 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
• Rings
• 32T, CNC-machined alloy, X-SYNC 2
• Bottom bracket
• Sram DUB BSA, sealed bearings, 73mm
• Chain
• Sram GX Eagle, 12s, Powerlock
• Rear derrailleur
• Sram X01 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1
• Shift levers
• Sram GX Eagle AXS
• Casette
• Sram XG-1295, 10-52T, 12s
• Derailleur hanger
• Sram UDH
• Weight
• 12.2 kg
