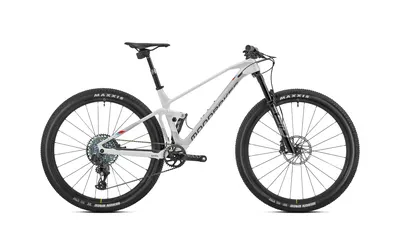

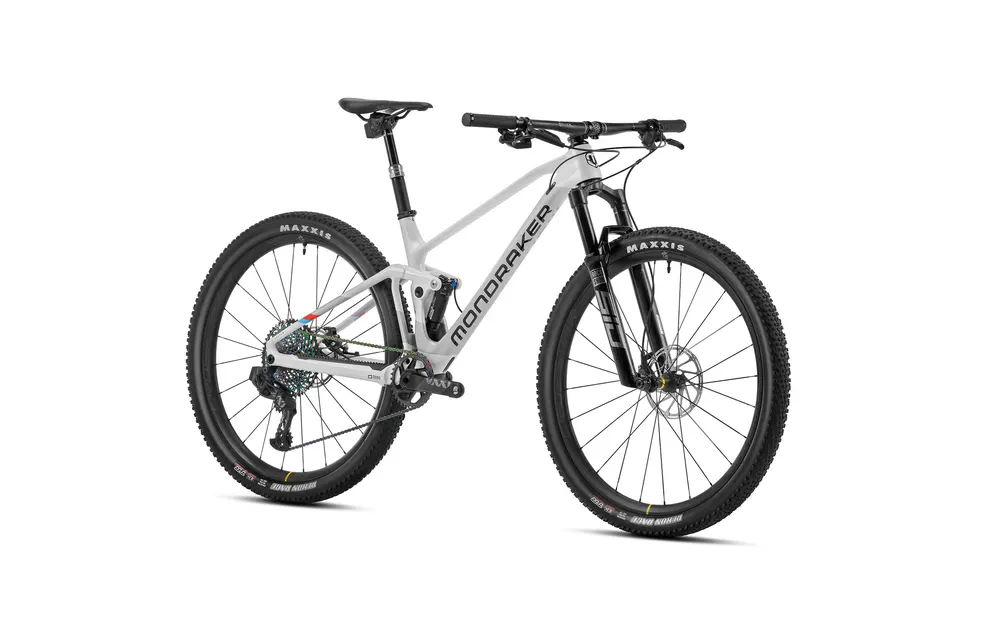

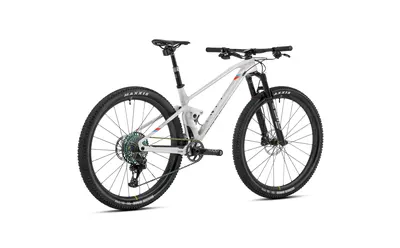

F-PODIUM CARBON DC RR 2023

על המוצר

• Frame
• F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 115mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Sizes
• S: 390mm / M: 420mm / L: 470mm / XL: 510mm
• Rear shock
• Rockshox SID Luxe Ultimate RLR DebonAir, 185x50mm. Settings: TwistLock 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Shock settings
• Light compression, medium rebound, Lockout 430, 1 Token
• Fork
• Rockshox SID Ultimate RL 29, 120mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: TwistLock 2 position remote compression (open/lock), low-speed rebound, air preload
• Headset
• Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
• Fork remote
• RockShox TwistLoc FullSprint 125 B1
• Stem
• ONOFF Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
• Handlebar
• ONOFF Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips
• Rock Shox Twistloc grips
• Seatpost
• RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x100mm, M size 390x125mm, L/XL size: 440x150mm
• Saddle
• Fizik Antares R7
• Front brake
• Sram Level TLM, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake
• Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever
• Sram Level TLM, Direct Link actuation, tooled reach adjust, lever pivot bushings
• Rims
• Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
• Spokes
• 24 straight-pull double butted spokes
• Front hub
• Infinity hub, Boost 15x110mm, IS 6 bolts
• Rear hub
• Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
• Front tire
• Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tire
• Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
• Crankset
• Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings
• 34T, CNC-machined alloy
• Bottom bracket
• Sram DUB BSA, sealed bearings, 73mm
• Chain
• Sram XX1 Eagle, 12s rainbow, Powerlock
• Rear derrailleur
• Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1
• Shift levers
• Sram Eagle AXS Rocker paddle, 12s
• Casette
• Sram XG-1299, 10-50T, 12s
• Derailleur hanger
• Sram UDH
• Weight
• 11,1 kg
