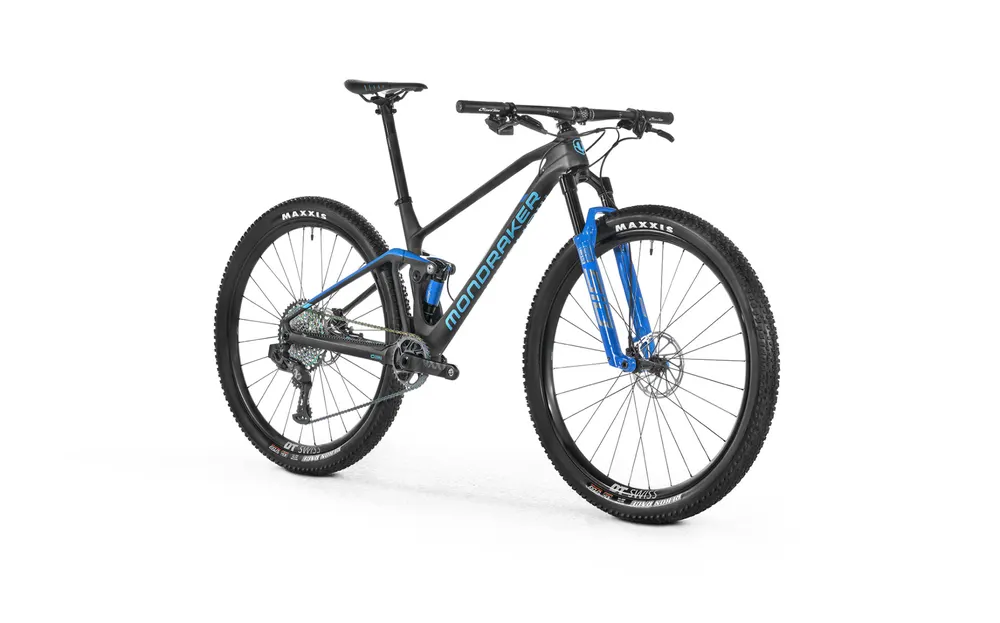

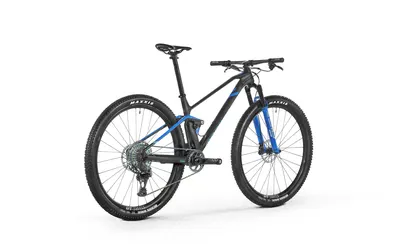

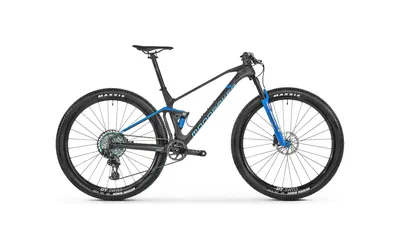

F-PODIUM CARBON RR 2021

על המוצר

• Frame
• F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Sizes
• S: 390mm / M: 420mm / L: 470mm / XL: 510mm
• Rear shock
• Rockshox SID Luxe Ultimate RLR Debonair, 185x47.5mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Shock settings
• Light compression, medium rebound, Lockout 430, 1 Token
• Fork
• Rockshox SID SL Ultimate RL 29, 100mm, Charger Race day, Debonair, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload
• Headset
• Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
• Stem
• Onoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
• Handlebar
• Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips
• LIZARD DSP 30.3
• Seatpost
• Onoff Helium Carbon 0-R, diameter 31.6mm, length 400mm
• Saddle
• Fizik Antares R7
• Front brake
• Sram Level Ultimate, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware
• Rear brake
• Sram Level Ultiamte, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware
• Brake lever
• Sram Level Ultimate, carbon lever, Direct Link actuation, tooled reach adjust, lever pivot bearings, titanium hardware
• Rims
• DT Swiss XRC1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes
• Spokes
• DT Aerolite & DT aero comp, straightpull
• Front hub
• DT 180, Boost 15x110mm, IS 6 bolts
• Rear hub
• DT 180, Boost 12x148mm, 36T Ratchet EXP system, IS 6 bolts, XD freehub
• Front tire
• Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tire
• Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
• Crankset
• Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings
• 34T, CNC-machined alloy, X-SYNC 2
• Bottom bracket
• Sram DUB BSA, sealed bearings, 73mm
• Chain
• Sram XX1 Eagle, 12s, Powerlock
• Rear derrailleur
• Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1
• Shift levers
• Sram Eagle AXS, 12s
• Casette
• Sram XG1299 10-50T, 12s
• Derailleur hanger
• Sram UDH
• Weight
• 10.1 kg
