על המוצר

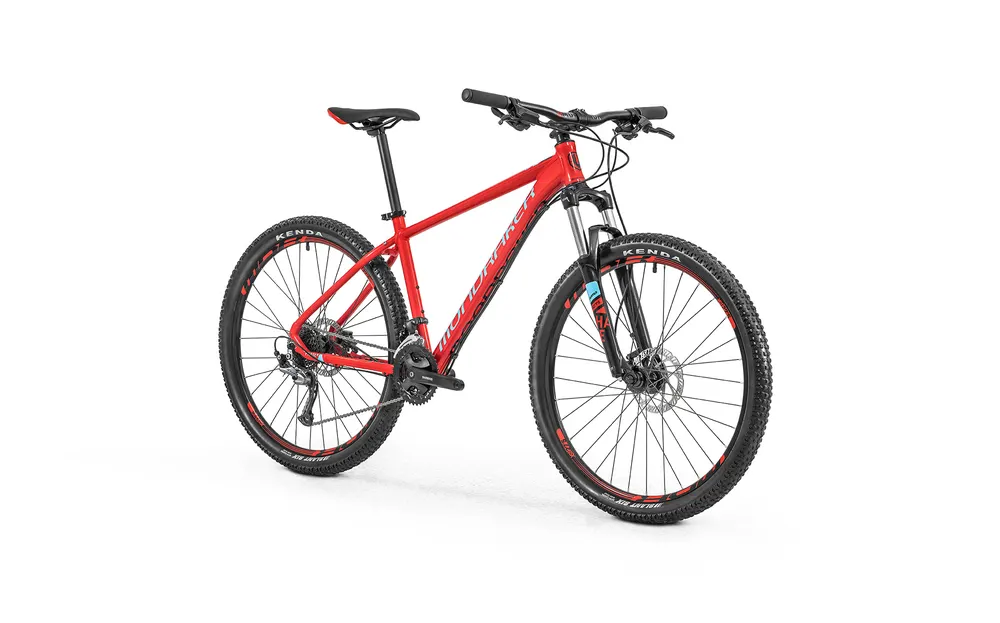

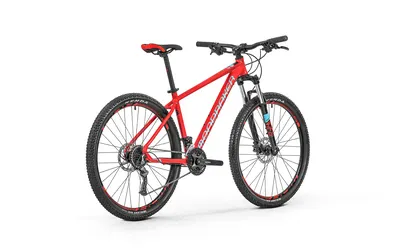

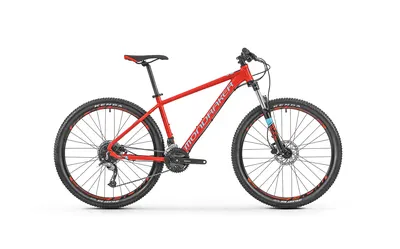

- Phase 27´5 6061 Custolite Alloy triple butted, Avant Geometry, internal headset, replaceable hanger, BSA bottom bracket, QR 9mm rear axle
- Sizes
- S: 380mm / M: 430mm / L: 480mm / XL: 530mm
- Rear shock
- /
- Shock setting
- /
- Fork
- Suntour XCT ATB RL 27´5 100mm, 28mm steel stanchions, 1-1/8” steerer tube, 9mm QR axle. Settings: spring preload, lockout
- Headset
- CH-9280, Internal ZS, 44mm external diameter cup

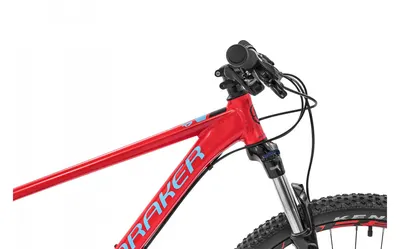

- Stem
- MDK XC, alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 75mm, size XL: 90mm

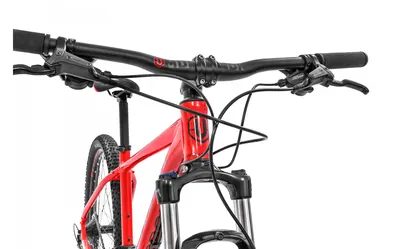

- Handlebar
- MDK XC 0.5, 6061 alloy, rise: 15mm, width: 720mm, 9º backsweep, 5º upsweep, 31.8mm barbore
- Grips
- Onoff Diamond, 130mm
- Seatpost
- MDK XC, 6061 T6 alloy, diameter 27.2mm, length 350mm, offset 15mm

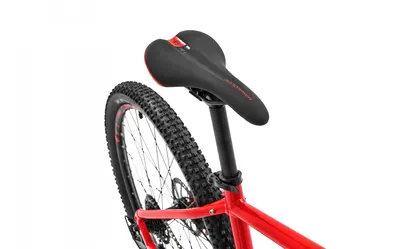

- Saddle
- Mondraker Phase 27´5 design
- Front brake
- Tektro HDM275 hydraulic, 160mm IS 6 bolts rotor
- Rear brake
- Tektro HDM275 hydraulic, 160mm IS 6 bolts rotor
- Brake lever
- Tektro HDM275 hydraulic
- Rim
- MDK-XS1 27´5, 24mm external width, 32 spokes
- Spokes
- CN round stainless steel
- Front hub
- MDK DC20, 9x100mm QR axle, cup & cone ball bearings, IS 6 bolts
- Rear hub
- MDK DC22, 9x135mm QR axle, cup & cone ball bearings, IS 6 bolts
- Front tyre
- Kenda Slant Six 27´5x2.35 single compound, 30TPI, wire bead
- Rear tyre
- Kenda Slant Six 27´5x2.35 single compound, 30TPI, wire bead
- Crank
- Shimano MT100, 3x9s, S/M size: 170mm, L/XL size: 175mm
- Rings
- 40/30/22T
- Bottom bracket
- CH-52
- Pedals
- Wellgo LU-895DU
- Chain
- KMC Z99, 9s
- Front derailleur
- Shimano Altus M2000, down swing, down pull
- Rear derailleur
- Shimano Acera M3000, Shadow, SGS, 9s
- Lever
- Shimano Altus M2000, 3x9s
- Sprocket
- SunRace CSMS90, 11-34T, 9s
- Hanger
- Mondraker M072
