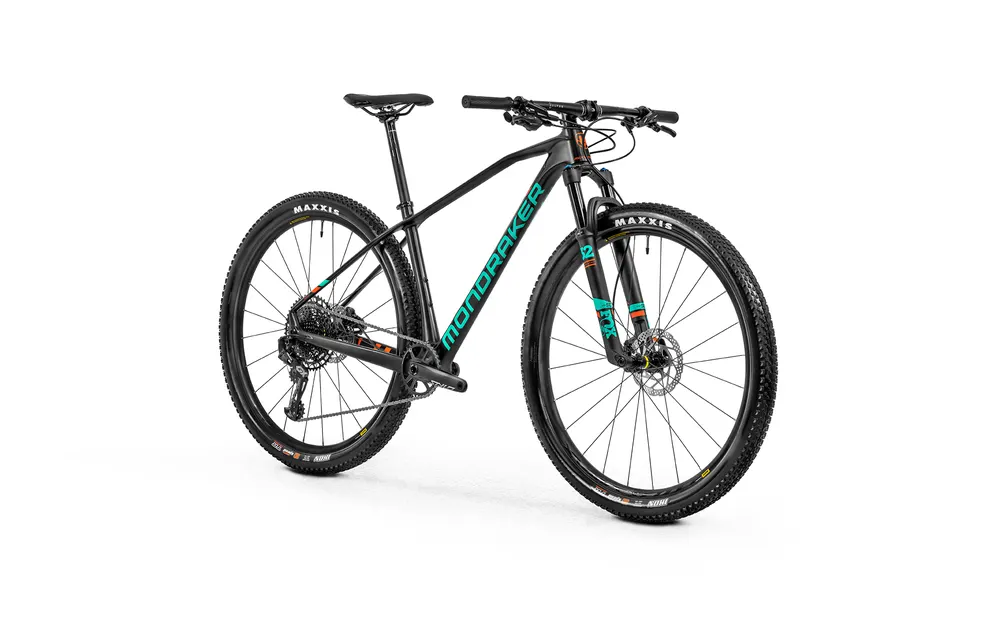

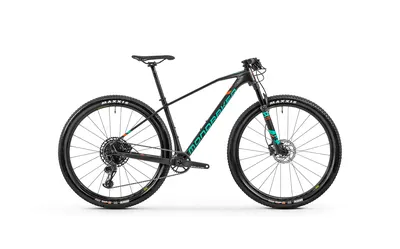

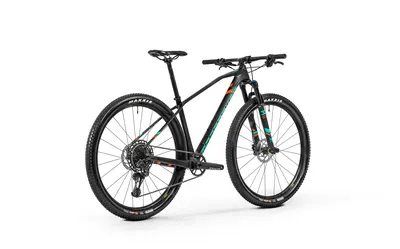

CHRONO CARBON RR 29 2020

על המוצר

• Frame

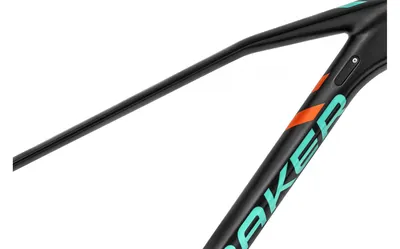

• Chrono Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design
• Sizes
• S: 395mm / M: 430mm / L: 470mm / XL: 520mm
• Rear shock
• /
• Shock setting
• /
• Fork
• Fox 32 29 Float GRIP EVOL Step Cast Performance, 100mm, tapered steerer tube,15x110mm axle, remote lockout, offset 44mm. Settings: lockout, rebound, air preload
• Headset
• Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
• Stem
• Mondraker Chrono Carbon, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm

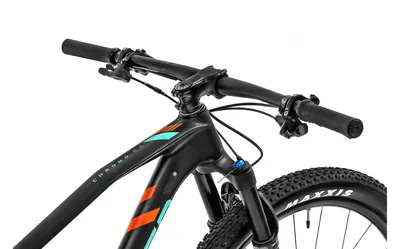

• Handlebar
• OnOff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore
• Grips
• Onoff Desert, 1lock-on, 135mm S/M, L/XL
• Seatpost
• OnOff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
• Saddle
• Mondraker XC Series Chrono Carbon R design
• Front brake
• Shimano MT501, RT56 160mm IS 6 bolts rotor, resin pads
• Rear brake
• Shimano MT501, RT56 160mm IS 6 bolts rotor, resin pads
• Brake lever
• Shimano MT501, servo wave, alloy lever
• Rim
• Mavic Crossmax 29, 25mm internal width, asymmetric, tubeless ready, 24 spokes
• Spokes
• Mavic Steel
• Front hub
• Mavic 15x110mm, sealed bearings, IS 6 bolts
• Rear hub
• Mavic 12x148mm, sealed bearings, ID360, IS 6 bolts
• Front tyre
• Maxxis Ikon 29x2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead
• Rear tyre
• Maxxis Ikon 29x2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead
• Crank
• Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings
• 34T, CNC-machined alloy, X-SYNC 2
• Bottom bracket
• Sram DUB BSA, sealed bearings, 73mm
• Pedals
• /
• Chain
• Sram NX Eagle, 12s
• Front derailleur
• /
• Rear derailleur
• Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Lever
• Sram Trigger NX Eagle, 12s, X-Actuation 1:1
• Sprocket
• Sram XG-1230, 11-50T, 12s
• Hanger
• Mondraker M068
• Others
• /
• Weight without pedals
• 10.4 kg
