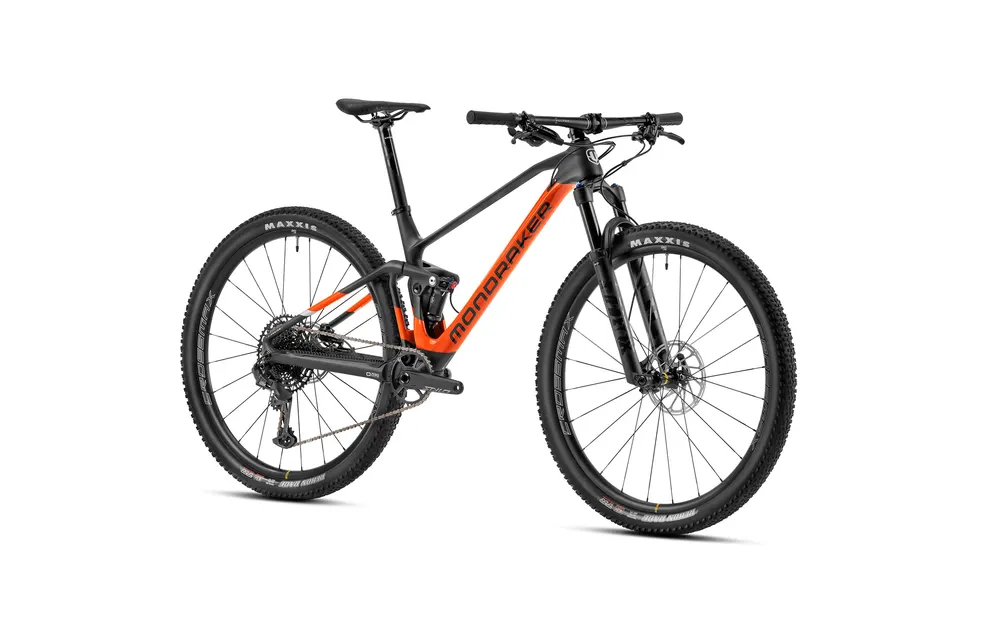

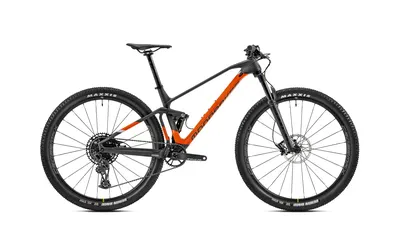

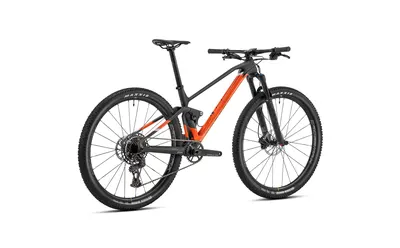

F-PODIUM CARBON

על המוצר

• Frame
• F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Sizes
• S: 390mm / M: 420mm / L: 470mm / XL: 510mm
• Rear shock
• Fox Float DPS SV Performance Elite, 185x47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Shock settings
• Firm compression, light rebound, air volume spacer 0.2
• Fork
• Fox 34 Step Cast Float GRIP EVOL Performance, 110mm, tapered steerer tube,15x110mm Boost axle, offset 44mm. Settings: remote 2pos Push-unlock, rebound, air preload
• Headset
• Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
• Fork remote
• Fox dual pull
• Stem
• MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
• Handlebar
• ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips
• ONOFF Twin, 1lock-on, 135mm
• Seatpost
• ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
• Saddle
• Fizik Antares R7
• Front brake
• Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake
• Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever
• Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
• Rims
• Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
• Spokes
• Mavic straight-pull double butted, contactless lacing
• Front hub
• Mavic, Boost 15x110mm, IS 6 bolts
• Rear hub
• Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
• Front tire
• Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tire
• Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
• Crankset
• Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings
• 34T, steel, X-Sync 2
• Bottom bracket
• Sram DUB BSA, sealed bearings, 73mm
• Chain
• Sram SX Eagle, 12s, Powerlock
• Rear derrailleur
• Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Shift levers
• Sram Trigger SX Eagle, 12s, X-Actuation 1:1
• Casette
• Sram PG-1230, 11-50T, 12s
• Derailleur hanger
• Sram UDH
• Weight
• 12,4 kg
