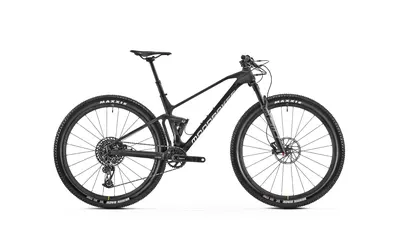

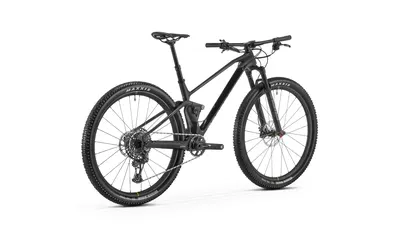

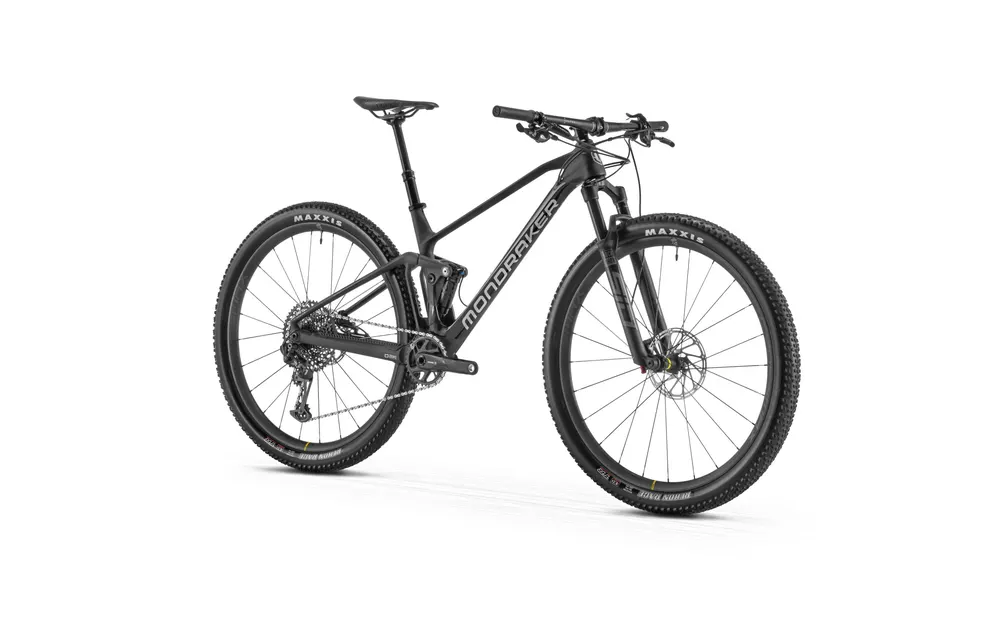

F-PODIUM CARBON DC R 2022

על המוצר

• Frame
• F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 115mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Sizes
• S: 390mm / M: 420mm / L: 470mm / XL: 510mm
• Rear shock
• Rockshox SID Luxe Ultimate RLR Debonair, 185x50mm. Settings: OneLoc, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Shock settings
• Firm compression, light rebound, air volume spacer 0.2
• Fork
• Rockshox SID Ultimate RL 29, 120mm, Charger Race day, Debonair, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: OneLoc, Low-speed rebound, air preload
• Headset
• Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
• Fork remote
• RockShox OneLoc
• Stem
• MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
• Handlebar
• ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips
• ONOFF Diamond, 1lock-on, 135mm
• Seatpost
• ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M/L/XL size 387x125mm
• Saddle
• Fizik Antares R7
• Front brake
• SRAM Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake
• SRAM Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever
• SRAM Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings
• Rims
• Mavic Crossmax Carbon XL R 29, 30mm internal width, hookless, tubeless ready, 24 spokes
• Spokes
• Mavic straightpull duble butted, contactless lacing
• Front hub
• Mavic, Boost 15x110mm, IS 6 bolts
• Rear hub
• Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
• Front tire
• Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tire
• Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
• Crankset
• SRAM X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings
• 34T, CNC-machined alloy, X-SYNC 2
• Bottom bracket
• SRAM DUB BSA, sealed bearings, 73mm
• Chain
• SRAM GX Eagle, 12s, Powerlock
• Rear derrailleur
• SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Shift levers
• SRAM Trigger GX Eagle, 12s, X-Actuation 1:1
• Casette
• SRAM XG-1275, 10-50T, 12s
• Derailleur hanger
• SRAM UDH
• Weight
• 11.7 kg
