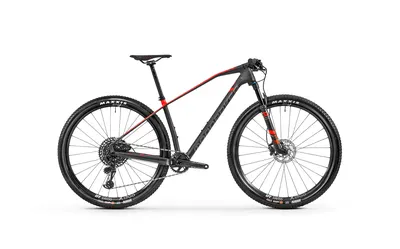

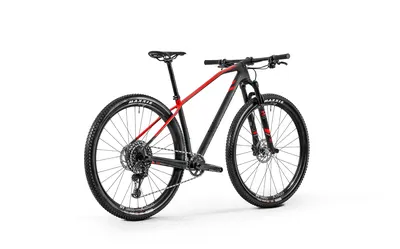

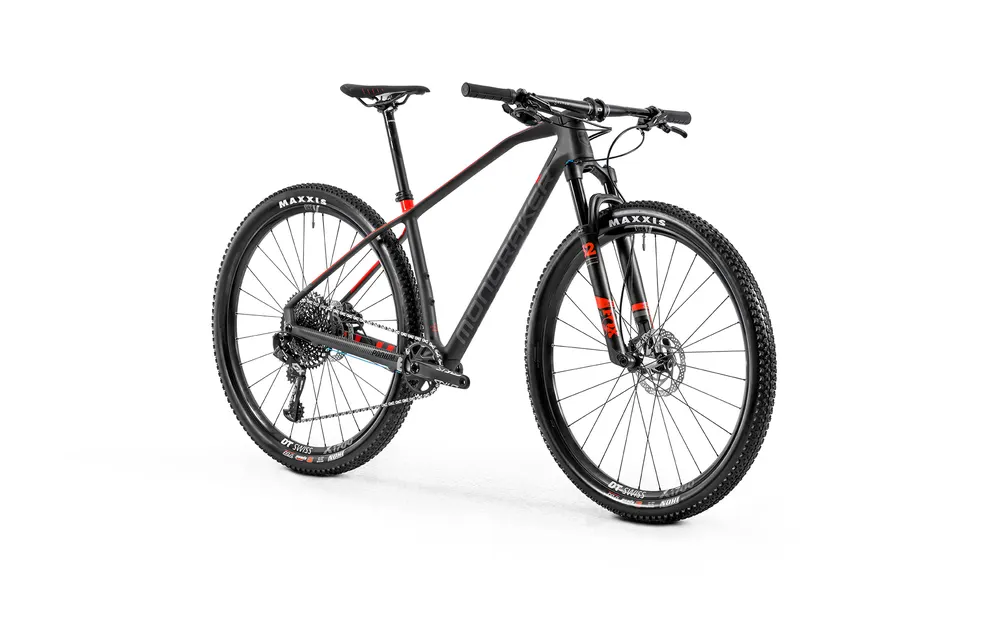

PODIUM CARBON R 29er 2020

על המוצר

• Frame
• Podium Stealth Air Carbon, Integrated Stem Technology (IST EVO), XC Forward Geometry, PF30 bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, Flatmount brake compatible, steel chain protector
• Sizes
• S: 395mm / M: 430mm / L: 470mm / XL: 520mm
• Rear shock
• /
• Shock setting
• /
• Fork
• Fox 32 29 Float GRIP EVOL Step Cast Performance, 100mm, tapered steerer tube,15x110mm axle, remote lockout, offset 44mm. Settings: lockout, rebound, air preload
• Headset
• Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
• Stem
• Stealth Carbon Integrated, 31.8mm barbore, length: sizes S/M: 75mm, size L: 90mm, size XL: 105mm
• Handlebar
• OnOff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore
• Grips
• Onoff Twin, 1lock-on, 135mm
• Seatpost
• OnOff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
• Saddle
• Fizik Antares R7
• Front brake
• Shimano MT501, RT56 160mm IS 6 bolts rotor, resin pads
• Rear brake
• Shimano MT501, RT56 160mm IS 6 bolts rotor, resin pads
• Brake lever
• Shimano MT501, servo wave, alloy lever
• Rim
• DT-Swiss X1700 Spline 29, 25mm internal width, tubeless ready, 28 spokes
• Spokes
• DT Competition Straight pull
• Front hub
• DT 350, 15x110mm, IS 6 bolts
• Rear hub
• DT 350, 12x148mm, IS 6 bolts, XD freehub
• Front tyre
• Maxxis Ikon 29x2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead
• Rear tyre
• Maxxis Ikon 29x2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead
• Crank
• Truvativ Stylo 7K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings
• 34T, CNC-machined alloy, X-SYNC 2
• Bottom bracket
• Sram DUB PF30, sealed bearings, 73mm
• Pedals
• /
• Chain
• Sram GX Eagle, 12s
• Front derailleur
• /
• Rear derailleur
• Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1
• Lever
• Sram Trigger GX Eagle, 12s, X-Actuation 1:1
• Sprocket
• SRAM XG-1275, 10-50T, 12s
• Hanger
• Mondraker M068
• Others
• /
• Weight without pedals
• 9.7 kg
